Kontrollpanel Vanderbilt International Spc5330.320-l1 spc control panel 8-128 zones ethernet g3

The SPC5330.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 128 zones (8 on-board), 128 outputs (6 on-board), 16 system keypads,

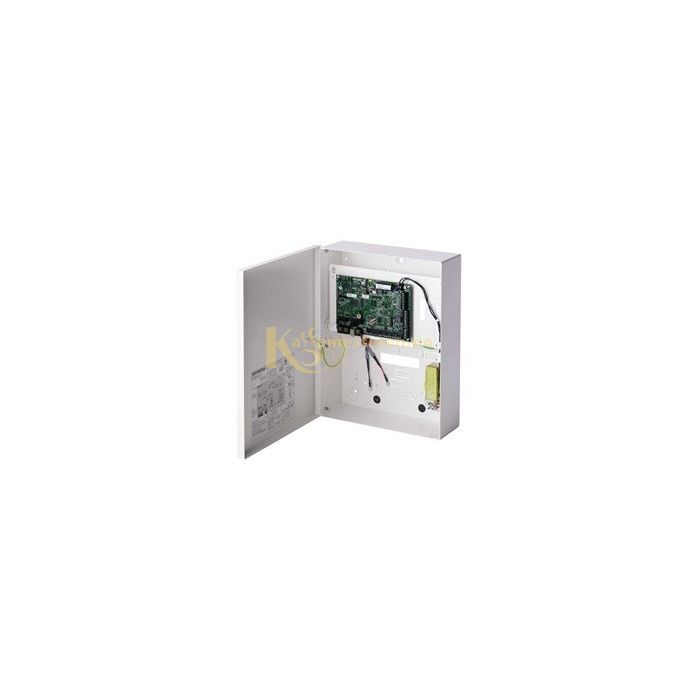

The SPC5330.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 128 zones (8 on-board), 128 outputs (6 on-board), 16 system keypads, 16 doors, 8 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 16 areas, 500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 120 Intrunet wireless detectors (mixed with wired zones). The panel comes in a tamper protected and hinged metal housing with space for optional 17 Ah battery and 4 additional expanders. Technical data Firmware V3.4 Programmable areas 16 Max. number of user codes 500 Remote controls Up to 50 Wireless Panic Alarm Up to 128 Event memory 10'000 intrusion events, 10'000 access events Language Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv. Number of on-board zones 8 Max. number of hardwired zones 128 Max. number of wireless zones 120 (take away wired zones) EOL resistor Dual 4k7 (default), other resistor combinations selectable Max. number of outputs 128 Number of on-board relays 1 strobe (30 VDC / 1 A resistive switching current) Number of on-board open coll. 2 internal / external bell, 3 freely programmable (each max. 400 mA resistive switching current, supplied via auxiliary output) Door capacity Max. 16 entry doors or 16 entry/exit doors Number of card reader Max. 32 Radio module Optional (SPCW110) Verification 8 verification zones with max. 4 IP-cameras and 8 audio devices. Video Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.) Audio Up to 60 sec. pre / 60 sec. post audio rec
